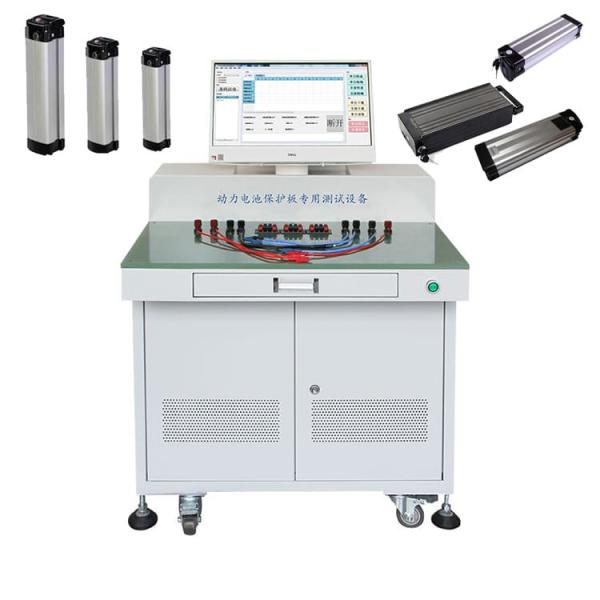

Finished Battery Pack Testing Machine 100V 120Amp Battery Load Tester

Name: Finished Battery Pack Testing Machine 100V 120Amp Battery Load Tester
Brand: XWELL
Price: 5800 USD

China Finished Battery Pack Testing Machine 100V 120Amp Battery Load Tester wholesale

Brand Name : XWELL

Model Number : BTS100-20-120

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : USD 5800/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Open Circuit Voltage : 0-100V

Data Output : EXCEL,TXT

Voltage and Current Detection Sampling : Four-wire sampling

Data Output Mode : EXCEL/TXT/Chart

Communication Interface : Mesh port/Network port

Cabinet Size : 850*700*920mm

Warranty : 1 years

Charging range : 0.1-20A

Overdischarge current : 0-19.99A

Contact Now

Finished Battery Pack Testing Machine 100V 120Amp Battery Load Tester

Product Description

The comprehensive tester for finished batteries is a device for quickly and accurately testing the performance of finished
lithium batteries. The main test items are: open circuit voltage, AC internal resistance, discharge test, discharge overcurrent test, short circuit protection test, charge test, charge protection test, resistance test. The system adopts a 32-bit ARM processor, voltage and current adopts a 16-bit AD converter. Compared with similar equipment, the test speed is faster and the test accuracy is high. It supports simultaneous operation of multiple devices. Widely used in automotive
electronics, aerospace, shipbuilding, solar storage, electric bicycles, electric motorcycles, backup power batteries, communication power supplies and other power battery pack production and scientific research experiment testing.

Product Features

1.7.2V-85V test open circuit voltage, peak current 100A
2. Try charging voltage test
3. Charging current test
4. Internal resistance test
5. Discharge current test
6. Load voltage test
7. Overcurrent current test
8. Overcurrent recovery voltage test
9. Set aside time
10. Setting of discharge time and current
11. Overcurrent protection delay time setting
12. Over current step current setting

Product Specification

Battery TesterZTW52	Range	Minimum resolution	Precision:±(% Reading + number)
Single voltage	0-4.999V	1mV(0.001V)	±(0.03% + 2 )
Dual voltage	0-9.999V	10mV(0.01V)	±(0.05% + 3 )
Essential resistance	0—999 mΩ	1 mΩ	±(0.1% + 2 )
Short retention period	0-99.9 ms	0.1 ms	±(1% + 3 )
Identification resistor	0-999.9 KΩ	0.1KΩ	±(1% + 3 )
Charge and discharge current	50—2000 mA	1 mA	±(0.5% + 5 )
Single-section overdischarge current	0-8.00A	10mA(0.01A)	±(1% + 5 )
Overdischarge current	0-19.99A	10mA(0.01A)	±(1% + 5 )
Capacity	0—9999 mAh	1mAh	±<3%
