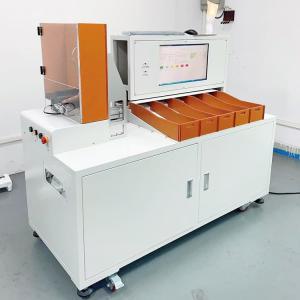

High Speed 5 Channel Automatic Cylindrical Battery Sorting Machine 32140 33138 33140
Cell Soritng Machine Description
MD-BS05 can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders batteries.
Cell Sorting Machine Features
1.Automatically sort the voltage and internal resistance of cylindrical batteries like 18650,26650
2.High precision and fast speed,High degree of automation, high productivity
3.Touch screen operation, easy and fast responding.
4.The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability
5.Humanized processing of subtle links greatly guarantees the safety of operators and products
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types | Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
